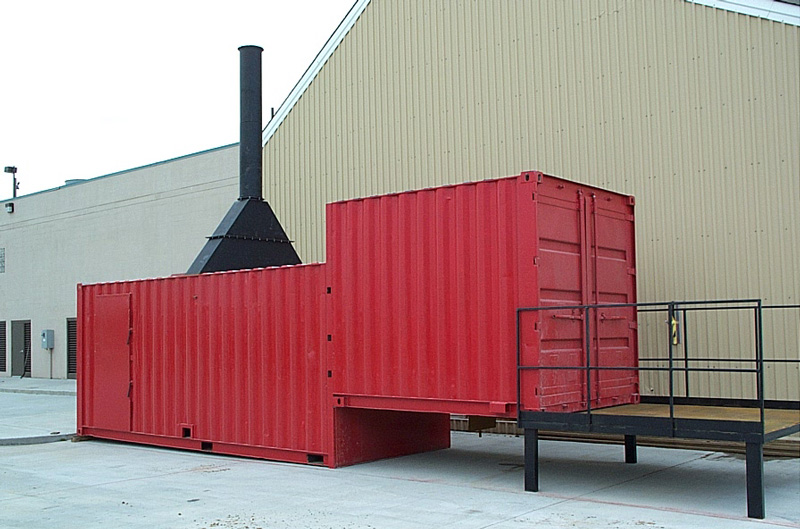

Model: GB
(Ground based Flashover unit)

Model: GB

Burn Module:

  • Insulated and lined with heat resistant panels
  • Firebrick floor over 2” concrete slab
  • 2 Thermocouples
  • Work platform with safety railings

Observation module:

  • Walls and ceiling, steel lined and insulated
  • Spring loaded Exit doors
  • Bench seating

Options:

  • Trailer mounting
  • Custom built heavy duty steel doors
  • Phoenix Fire Tiles

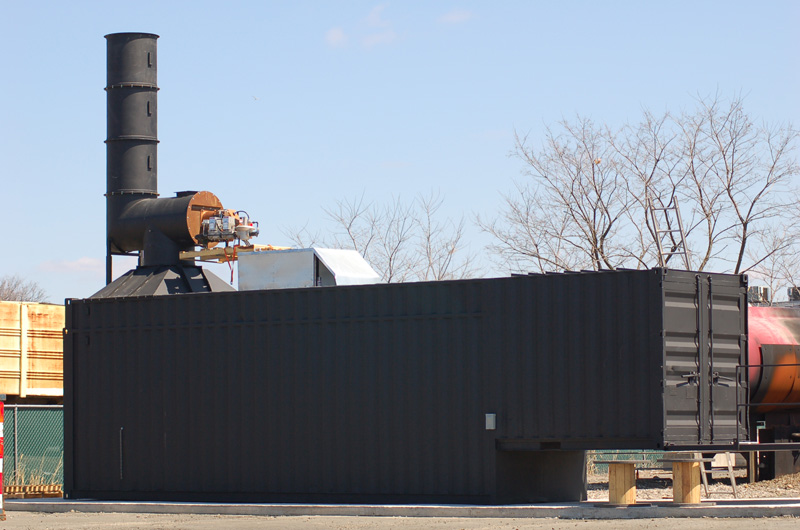

Flashover trainer with attached smoke scrubber

Flashover trainer with attached smoke scrubber

Burn Module:

  • Insulated and lined with heat resistant panels
  • Firebrick floor over 2” concrete slab
  • 2 Thermocouples
  • Work platform with safety railings

Observation module:

  • Walls and ceiling, steel lined and insulated
  • Spring loaded Exit doors
  • Bench seating

Smoke scrubber:

  • Smoke collection hood
  • 3 types of Smoke scrubber: Natural gas, Propane, Water

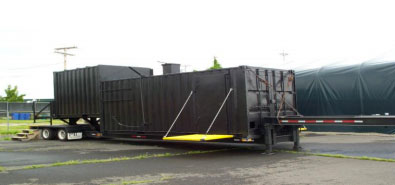

Mobile GB MODEL

Mobile GB MODEL

Burn Module:

  • Insulated and lined with heat resistant panels
  • Firebrick floor over 2” concrete slab
  • 2 Thermocouples
  • Work platform with safety railings

Observation module:

  • Walls and ceiling lined and insulated
  • 2 exit doors with ramps
  • Bench seating

Trailer:

  • DOT approved, tandem axles
  • ABS air brakes
  • 5th wheel Goose Neck

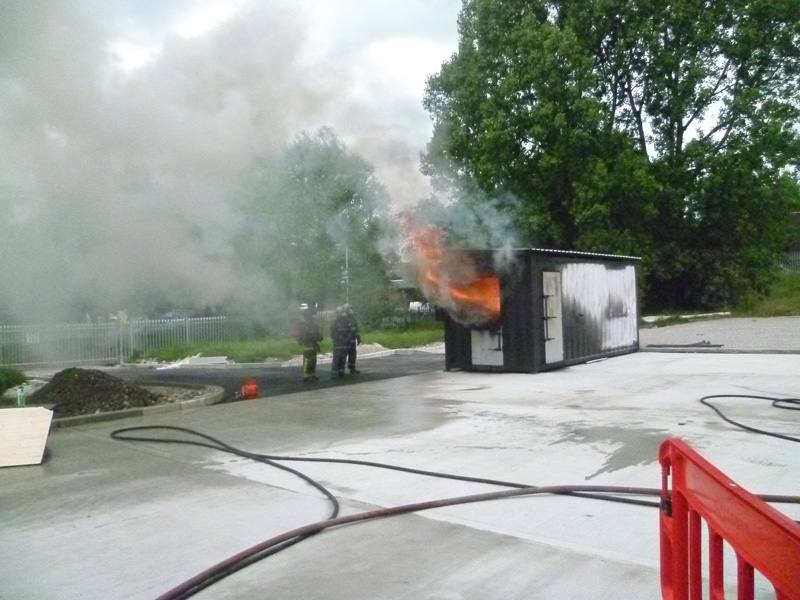

Backdraft simulator

Backdraft simulator

Burn Module:

  • Insulated and lined with refractory panels
  • Firebrick floor over 2” concrete slab
  • Two thermocouples

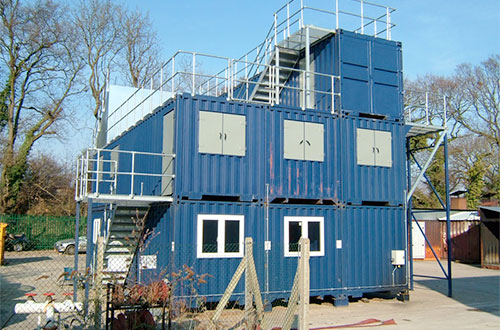

Container Fire Building

Container Fire Building

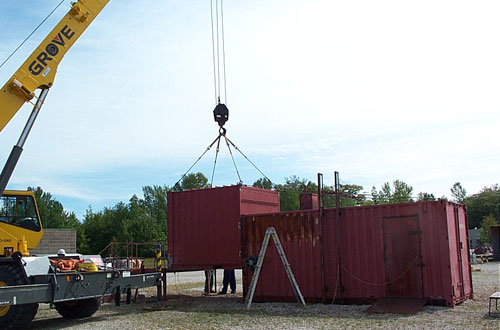

Replacement Burn Chamber

Replacement Burn Chamber
